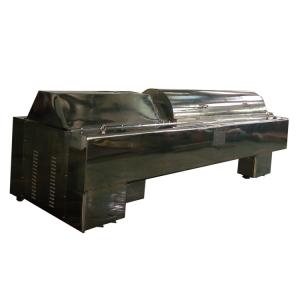

Horizontal 4000RPM 304SS Fruit Juice Decanter Separator

LW Pilot Decanter Centrifuge Application In Fruit Juice, Tea, Coffee , Red Wine Production Separation

LW series decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. It has two-phase (solid-liquid) separation and three-phase (solid-liquid-liquid) separation

It is wide application range, work continuously, large processing capacity, low cost, convenient maintenance and so on.

It is the best equipment for separating solid-liquid.

Technical parameters decanter centrifuge

Advantages decanter centrifuge in food industrial :

The decanter centrifuges used in the pharmacy, food and beverage industries shall the following feature:

1, high separating factors so as to ensure minimum residue content in the separated liquid and minimum liquid content inside the residue,

2, achieve higher yields; the machines shall meet the health requirements

3, a structure easy for cleaning, preferable automatic cleaning; the substances used in the pharmacy, food and beverage industries are general acidic, and the machine cleaning liquids are alkaline, which requires that the machine parts in contact with the substance cater must meet this requirement.;

4, long time stable operation: the machines generally run in continuous twenty four hours, shall not

have faults in the working process otherwise the substances will deteriorate, which requires the machines are highly reliable.

Decanter Centrifuge Feature:

The decanter centrifuge can be adjusted to suit individual requirements by varying:

1.Differential with high precision, compact structure, smooth operation.

2.Main bearing of imported bearings, to ensure the accuracy of the operation.

3.The part contacting with material is made of stainless steel.

4.The machine is equipped with a variety of safety overload protection devices, to make sure safety in production.

5.The machine system has two types, regular and explosion proof, to meet the different requirement.

6.Large length to diameter ratio, high speed, many angels of drum cone structure

7.Spiral pusher surface adopts hard alloy materials, against abrasion powerfully

8.According to the customer's desire, the frame can develop to low center of gravity, high bracket and move.

9.Spiral structure with BD board is used for the concentration dehydration of activated sludge and difficult separate materials

10.PLC control box

Application:

The decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤ 100°C, esp. for separatong the suspensions whose consistency and particle size vary greatly and for which recovery of filter cloth is difficult, such as treatment of PVC resins, ammonium sulfite, barrium carbonate, strontium sulphate, lithopone,starch, diatomite, plaster, bauxite, soybean protein, peanut protein, fruit juice, drinks, vegetable oil, citric acid, powder of blood, powder of titanium white, kaolin clay and drilling mud, etc., and dewatering of washed coal and fine coal, purification of waste oil, treatment of grain stillage liquid waste and municipal sewage and mineral classification. Besides, it is suitable for waste water treatment of electric power plant sludge, printing and dyeing sludge, paper manufacture sludge.

Certification of decanter centrifuge

Photos of decanter centrifuge

Packages

Our service:

The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 15 years’ service life of our products with 1 years’ warranty and life maintenance.
4. 24-hour hot line: 86-13151637387 . Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.

304SS decanter separator

4000rpm Decanter separator

4000rpm Decanter Centrifuge

Horizontal 4000RPM 304SS Fruit Juice Decanter Separator Images
