200L/H Continuous Screw Solid Liquid Separation Centrifuge

LW Continuous Screw Small Mini Lab Solid Liquid Separation Decanter Centrifuge

Product Description:

Horizontal screw centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or

classify 1um-5um solid phased particles.

It is wide application range, work continuously, large processing capacity, low cost, convenient

maintenance and so on. It is the best equipment for separating solid-liquid.

for structure, we have one motor, two motor on two side, two motors on one side.

Tenchical parameters:

The bowl, conveyor, inlet tube, outlets, cover and other parts in direct contact with the process media are all made of stainless steel. The discharge ports, conveyor flights and feed zone are protected with materials that are highly resistant to erosion. The frame is made of mild steel with an epoxy enamel finish.

working principle:

The machine starts and speeds up automatically.
When the proper working condition are met and the revolving drum reaches the feeding speed,
the feeding valve opens and allows suspension which will be separated to enter into the product compartment of the spiral feeder through the feeding pipe.
After the preliminary speed-up,the suspension passes the outlet of compartment and into the drum.Because of centrifugal force, the suspension in the drum is quickly divided into two phases;the heavier solid phase deposits to the inner wall of the drum and driven by the differential gear which results in the non-cynchronous movement between the spiral feeder and the drum,the solid phase will be transferred into the small end for further dehydration and finally discharged through solid phase outlet.
The separated liquid flows out though the big end or will be driven out by centrifugal pump.

Applications:

It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.

For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge), another is three phase centrifuge (solid liquid liquid centrifuge.)

1) City tap water, domestic sludge dewatering;

2) Oil drilling mud dewatering;

3) Sludge Oil Recovery;

4) Fruit juice separation

4) Refinery sludge concentrated dehydration;

5) Distiller ‘s grains dehydration;

6) Paper, printing and dyeing wastewater separation;

7) Medical sludge dewatering;

8) Soy protein dehydration;

9) Plant oil clarification and separation;

10) Cosmetic clarification and separation;

11) Bleaching powder separation.

it is widely used in chemical, light industry, pharmacy, food, environment protection and other trades. For instance: Oxalic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium chloride, ammonium nitrate, ammonium sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, blood products, blue vitriol, borax, boric acid, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chrome yellow, clay, methyl cellulose, corundum, corn embryo, cooking oil, processed fish, mirabilite, glutamate, hops, pesticide, diatomaceous earth, herbicide, diatomaceous earth, herbicide, tartaric acid, sodium sulfate, sodium phosphate, sodium nitrate, carbon black and others.

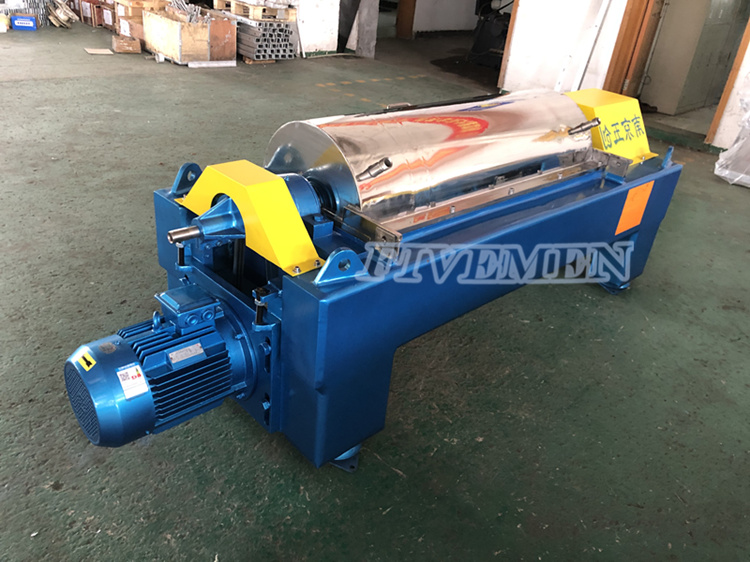

Shipping Photos:

Our service:

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.
3. Abundant spare parts in stock are available to provide.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.

Our Company:

Nanjing FiveMen Machine CO., LTD is professionally engaged in design, manufacture, sale and installation of kinds of separators. We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine.

FAQ:

1. How can we visit your factory?
If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.

2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.

3. How do you protect the quality?
Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get
multiprocessing,transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.

4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.

5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous
brands.

6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.

7. Do you have OEM serive? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.

8. Do you supply second hand centrifuge?
No, we only provide brand new machine.

9. Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.

10. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.

11. What payment mode you accept?
